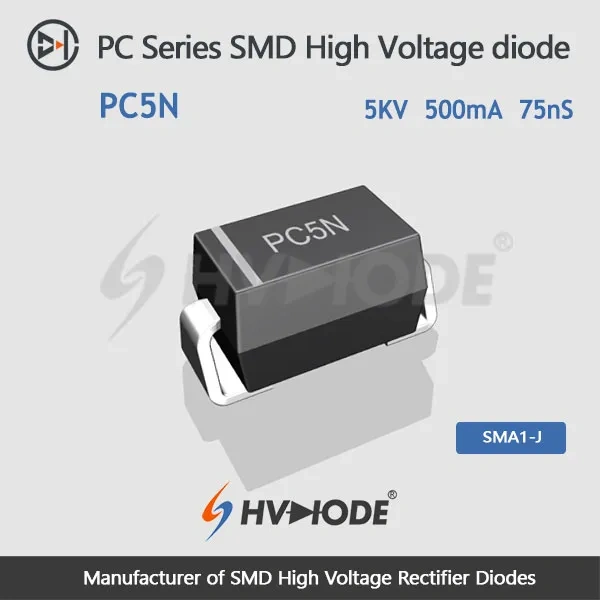

PC5N SMD high voltage diode 5KV,500mA,75nS

Name: PC5N SMD high voltage diode 5KV,500mA,75nS
Brand: HVDIODE - Suly Electronics Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Products Main features：
1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、J-Lead(Inner Bend) shapes.
5、Ultra small size package
6、Fast recovery PC Series are the same package size.

The PC5N from HVDIODE is a high-performance surface-mount high voltage diode designed for applications requiring rapid switching and high voltage handling. With a reverse voltage rating of 5KV, a forward current capacity of 500mA, and a swift recovery time of 75nS, this diode ensures efficient performance in demanding high-frequency circuits. Its compact SMD package and superior thermal management make it ideal for industrial, medical, and power supply applications.

GET A QUOTE Download

Desciption
data sheet
SMD HVdiode
Installation Guide

PC5N SMD high voltage diode Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=1.0μA	5
Peak Working Backward Voltage	Vrwm	KV	Ta=25℃ Ir=1.0μA	5
Average Forward Current	If(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50℃	500
Backward Recovery Time	Trr	nS		75
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	10
Operating Ambient Temperature	Ta	℃		-55～+175
Storage Temperature	Tstg	℃		-55～+150
Forward Peak Voltage	Vfm	V		≥4.5
Backward Peak Current	Irrm1	μA	@ Ta=25℃ VRM=VRRM	1.0
Backward Peak Current	Irrm2	μA	@ Ta=100℃ VRM=VRRM	20.0
Absolute Maximum Ratings & Electrical Characteristics

High Voltage Capability
Handles reverse voltages up to 5KV, suitable for rectifier high voltage applications.

Rapid Switching Capability
A swift 75nS recovery time enhances efficiency in high-frequency rectifier high voltage circuits.

Robust Thermal Management
High thermal conductivity materials ensure reliable operation under continuous high-current conditions.

Compact SMD Design
Facilitates easy integration into various high voltage bridge rectifier configurations, optimizing space without compromising performance.

Durable Construction
Epoxy encapsulation provides excellent protection against environmental stress, ensuring long-term reliability in high voltage diode rectifier systems.

Product Advantages

High Voltage Capability
Handles reverse voltages up to 5KV, suitable for rectifier high voltage applications.

Rapid Switching Capability
A swift 75nS recovery time enhances efficiency in high-frequency rectifier high voltage circuits.

Robust Thermal Management
High thermal conductivity materials ensure reliable operation under continuous high-current conditions.

Compact SMD Design
Facilitates easy integration into various high voltage bridge rectifier configurations, optimizing space without compromising performance.

Durable Construction
Epoxy encapsulation provides excellent protection against environmental stress, ensuring long-term reliability in high voltage diode rectifier systems.

Looking for a reliable and efficient high-voltage rectification solution? Contact the HVDIODE team today for detailed specifications, pricing, and support tailored to your project requirements.

About Us

Leading Innovator in High-Voltage Rectifier Technology
Established in 2008, HVDIODE (Anshan Suly Electronics Co., Ltd.) is a high-tech enterprise specializing in the research, development, and manufacturing of high-voltage rectifier components. With advanced production technology and equipment, we have been providing high-quality products and services to domestic and international universities, research institutions, and various enterprises, earning unanimous recognition and trust from our clients.

Core Manufacturing Capabilities and Quality Assurance

Advanced Production Technology: Utilizing state-of-the-art equipment and production techniques to ensure the highest quality of high-voltage diodes.
Comprehensive Product Range: Our offerings include SMD high-voltage diodes, ultra-fast recovery high-voltage diodes, glass-bluff high-voltage diodes, microwave oven high-voltage diodes, silicon carbide high-voltage diodes, and high-voltage high-power diodes.
Quality Management System: Adherence to rigorous quality control processes to maintain product reliability and safety.

Demonstrated Production Strength

Diverse Product Applications: Our products are widely used in various fields, including industrial special silicon stacks, X-ray high-voltage silicon stacks, PCB high-voltage silicon stacks, avalanche high-voltage silicon stacks, high-current rectifier silicon stacks, and glass ceramic high-voltage silicon stacks.
Global Clientele: We have established long-term cooperative relationships with clients across Southeast Asia, South Korea, the Middle East, Africa, and other regions.

Commitment to Sustainability
HVDIODE is dedicated to environmentally friendly practices, ensuring that our manufacturing processes comply with international standards and contribute to sustainable development.

Streamlined Customer Collaboration Process

Inquiry and Consultation: Understanding client requirements and providing technical guidance.
Customized Solutions: Offering tailored products to meet specific application needs.
Quality Assurance: Implementing strict quality control measures throughout the production process.
Timely Delivery: Ensuring prompt shipping and delivery schedules.
After-Sales Support: Providing ongoing technical support and services

Global Service Capability
With a robust international distribution network, HVDIODE is equipped to serve clients worldwide, delivering reliable high-voltage rectifier components and comprehensive support services.

Partner with HVDIODE for your high-voltage rectifier needs and experience unparalleled quality and service. Contact us today to learn more about our products and how we can assist in your projects.

FAQ

1. Who are we?
HVDIODE (Anshan Suly Electronics Co., Ltd.) is a high-tech enterprise specializing in the production of high-voltage rectifier components, established in 2008.

2. How can we guarantee quality?
We utilize advanced production technology and adhere to rigorous quality control processes to ensure the reliability and safety of our products.

3. What can you buy from us?
Our product range includes SMD high-voltage diodes, ultra-fast recovery high-voltage diodes, glass-bluff high-voltage diodes, microwave oven high-voltage diodes, silicon carbide high-voltage diodes, and high-voltage high-power diodes.

4. Why should you buy from us and not from other suppliers?
HVDIODE offers advanced production technology, a comprehensive product range, strict quality assurance, and a commitment to customer satisfaction, distinguishing us from other suppliers.

5. What services can we provide?
We provide technical consultation, customized product solutions, strict quality control, timely delivery, and comprehensive after-sales support.

PC series SMD high voltage diodes, due to the design of inner bend angle.

During use, according to the actual working voltage level, it is necessary to pay attention to the insulation distance of the medium.

If it is used completely exposed to the air, it is recommended to fill the two poles with insulating materials, or immerse in three-proof paint, which will achieve more reliable insulation.

Of course, this will also affect the heat dissipation performance of the SMD high voltage diode.

Therefore, according to the temperature rise, there are different solutions for selecting insulating glue with suitable insulation and thermal conductivity.

Of course, this solution is not necessary, you just need to consider this aspect in your design plan.
In most cases, the working medium of insulating oil and insulating gas does not need to consider this kind of solution.

The selection of high-voltage diodes is closely related to their usage environment。

1. Used in insulating oil. (Recommended)
2. Used in insulating gases. (Recommended)
3. Secondary packaging use. (High requirements for heat dissipation and other parameter performance of components)
4. Use in exposed air or add air cooling. (If the size of the high-voltage diode is small, it is easy to discharge, and the heat dissipation performance is average.)

For high-voltage diodes used in exposed air, it is recommended to install them with insulated electrodes at both ends.

Common treatment methods for surface adhesive insulation:

Characteristics of insulation adhesive material:

1. Silicone material usually presents a transparent and elastic rubber state after curing, which is more effective in shock resistance and can also withstand severe stress changes caused by large high and low temperature changes (-40 ° C~200 ° C).

2. Acrylic materials typically exhibit a transparent and hard coating after curing, with low moisture absorption and fast curing time, as well as excellent wear resistance and insulation.

3. After curing, Urethane material usually presents a transparent and hard coating, which has superior wear resistance and good moisture resistance. Its performance is particularly stable in low temperature environments, but it is less resistant to high temperatures.

4. The coating material based on epoxy is very sturdy and usually opaque, with good moisture and moisture resistance. Its resistance to chemical corrosion and wear is also very good. In addition, epoxy also has good dielectric properties.

Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.
