2CL69A Fast Recovery High Voltage Diode 4KV 5mA 80nS

Products Main features：
1、Axial leaded connection.
2、High thermal conductivity epoxy compound molding.
3、Low internal resistance reduces energy loss.
4、Special passivation glue chip protection
5、Excellent discharge characteristics.

GET A QUOTE

Desciption
Discharge problem

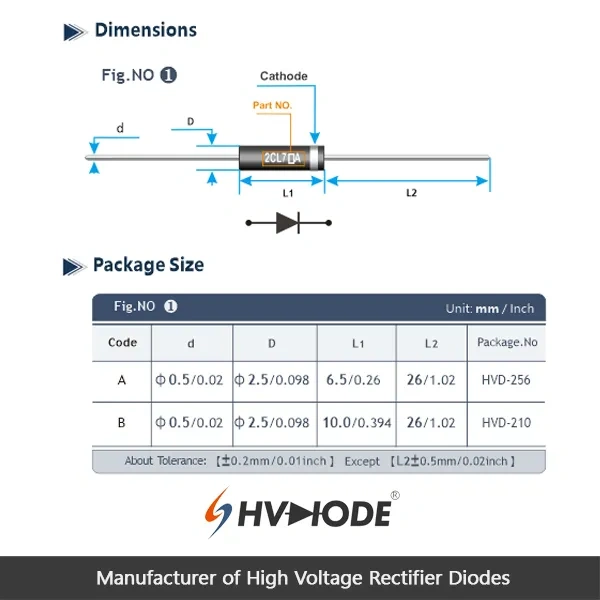

2CL69A Fast Recovery High Voltage Diode Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=2.0μA	4
Peak Working Backward Voltage	Vrwm	KV	Ta=25℃ Ir=2.0μA	4
Average Forward Current	If(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50℃	5
Backward Recovery Time	Trr	nS		80
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	0.5
Operating Ambient Temperature	Ta	℃		-55～+150
Storage Temperature	Tstg	℃		-55～+125
Forward Peak Voltage	Vfm	V		≥16.0
Backward Peak Current	Irrm1	μA	@ Ta=25℃ VRM=VRRM	2.0
Backward Peak Current	Irrm2	μA	@ Ta=100℃ VRM=VRRM	20.0
Absolute Maximum Ratings & Electrical Characteristics

The selection of high-voltage diodes is closely related to their usage environment。

1. Used in insulating oil. (Recommended)
2. Used in insulating gases. (Recommended)
3. Secondary packaging use. (High requirements for heat dissipation and other parameter performance of components)
4. Use in exposed air or add air cooling. (If the size of the high-voltage diode is small, it is easy to discharge, and the heat dissipation performance is average.)

For high-voltage diodes used in exposed air, it is recommended to install them with insulated electrodes at both ends.

Common treatment methods for surface adhesive insulation:

Characteristics of insulation adhesive material:

1. Silicone material usually presents a transparent and elastic rubber state after curing, which is more effective in shock resistance and can also withstand severe stress changes caused by large high and low temperature changes (-40 ° C~200 ° C).

2. Acrylic materials typically exhibit a transparent and hard coating after curing, with low moisture absorption and fast curing time, as well as excellent wear resistance and insulation.

3. After curing, Urethane material usually presents a transparent and hard coating, which has superior wear resistance and good moisture resistance. Its performance is particularly stable in low temperature environments, but it is less resistant to high temperatures.

4. The coating material based on epoxy is very sturdy and usually opaque, with good moisture and moisture resistance. Its resistance to chemical corrosion and wear is also very good. In addition, epoxy also has good dielectric properties.

Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.
