BRUF Series Ultra Fast Recovery High Voltage Diodes

Parameter Range:(2~10KV; 200~800mA; 40nS)

Trr:

40nS

Vr:

2KV

3KV

4KV

5KV

6KV

7KV

8KV

9KV

10KV

BRUF-Series:

BRUF

GET A QUOTE Download

Desciption
Discharge problem
Package Size-Product

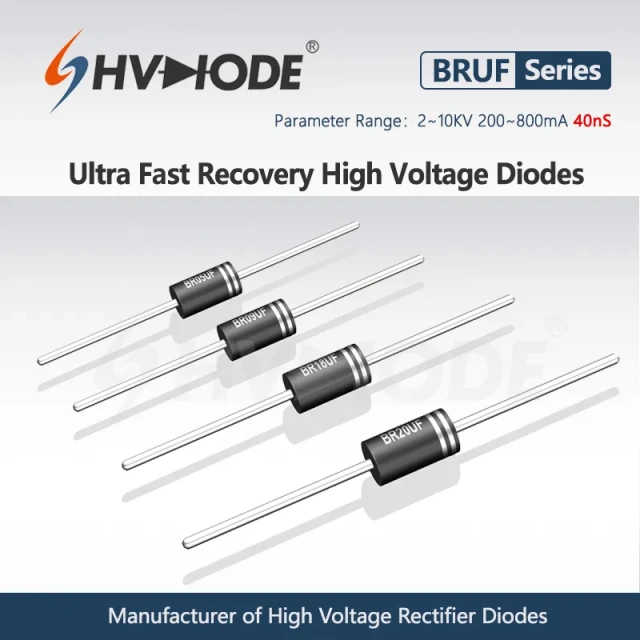

BRUF-Series Ultra Fast Recovery High Voltage diodes (2-10KV；200-800mA；40nS)

Type	Vrrm(KV)	Io(mA)	Trr(nS)	Ifsm(A)	Vfm(V)	Irrm1/Irrm2(uA)
	Ta=25℃ Ir=2uA	Ta=25℃		tp=8.3ms 25℃	Max	Ta=25℃/100℃

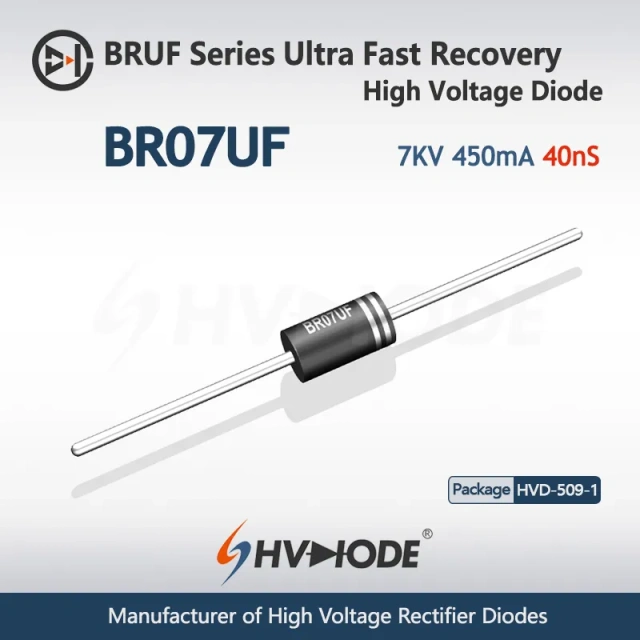

BR02UF	2	800	40	30	4.2	2/20
BR03UF	3	800	40	30	6.3	2/20
BR04UF	4	550	40	30	8.4	2/20
BR05UF	5	550	40	30	10.5	2/20
BR06UF	6	450	40	30	12.6	2/20
BR07UF	7	450	40	30	14.7	2/20
BR08UF	8	350	40	30	16.8	2/20
BR09UF	9	250	40	30	18.9	2/20

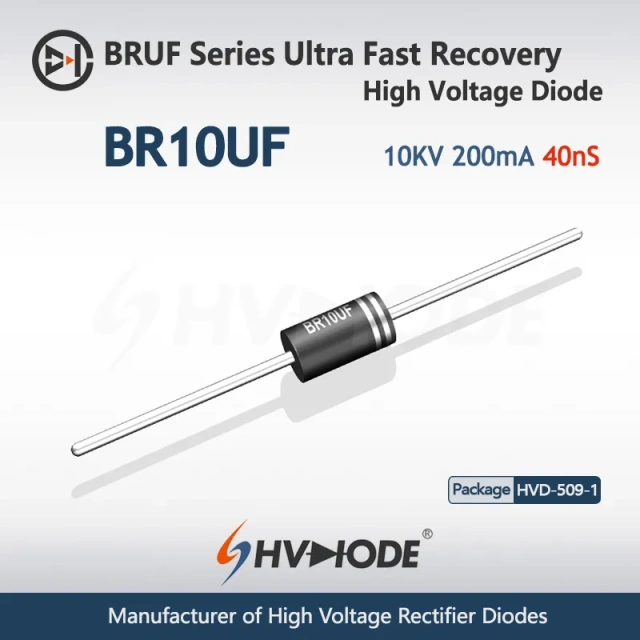

BR10UF	10	200	40	30	21.0	2/20

Junction Temperature(MAX) Temperature -55～+150℃; Storage Temperature -55～+150℃; The models are not displayed individually, please contact customer service for specific requirements [email protected]

The selection of high-voltage diodes is closely related to their usage environment。

1. Used in insulating oil. (Recommended)
2. Used in insulating gases. (Recommended)
3. Secondary packaging use. (High requirements for heat dissipation and other parameter performance of components)
4. Use in exposed air or add air cooling. (If the size of the high-voltage diode is small, it is easy to discharge, and the heat dissipation performance is average.)

For high-voltage diodes used in exposed air, it is recommended to install them with insulated electrodes at both ends.

Common treatment methods for surface adhesive insulation:

Characteristics of insulation adhesive material:

1. Silicone material usually presents a transparent and elastic rubber state after curing, which is more effective in shock resistance and can also withstand severe stress changes caused by large high and low temperature changes (-40 ° C~200 ° C).

2. Acrylic materials typically exhibit a transparent and hard coating after curing, with low moisture absorption and fast curing time, as well as excellent wear resistance and insulation.

3. After curing, Urethane material usually presents a transparent and hard coating, which has superior wear resistance and good moisture resistance. Its performance is particularly stable in low temperature environments, but it is less resistant to high temperatures.

4. The coating material based on epoxy is very sturdy and usually opaque, with good moisture and moisture resistance. Its resistance to chemical corrosion and wear is also very good. In addition, epoxy also has good dielectric properties.

Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.

Package No. HVD509-1
