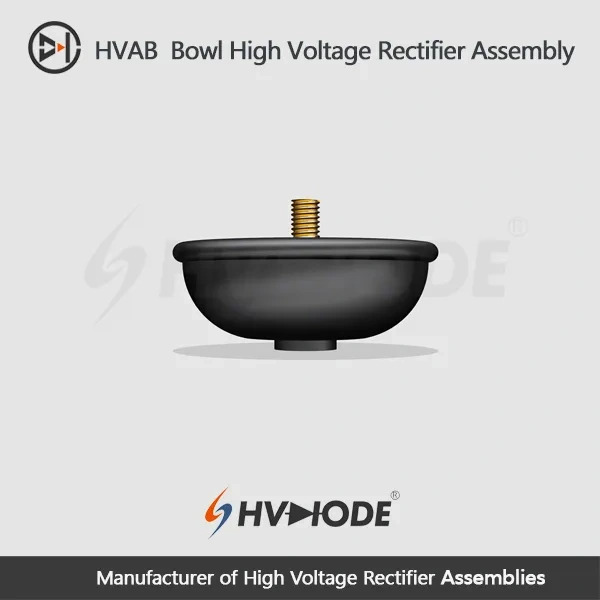

HVAB20H2 Bowl High Frequency High Voltage Rectifier Assembly 20KV 2A 100nS

Product main features:
1. Series assembly nut connection installation.
2. Specific plastic shell body, filled with epoxy resin.
3. Excellent anti-surge current impact characteristics.
4. High temperature resistant chip.
5. High-speed switching response characteristics.
GET A QUOTE
  • HVAB20H2 Bowl High Frequency High Voltage Rectifier Assembly 20KV 2A 100nS
  • HVAB20H2 Bowl High Frequency High Voltage Rectifier Assembly 20KV 2A 100nS
  • HVAB20H2 Bowl High Frequency High Voltage Rectifier Assembly 20KV 2A 100nS
Desciption
 HVAB20H2 Bowl High Frequency High Voltage Rectifier Assembly  Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=2.0μA 20
 Peak Working Backward Voltage Vrwm KV Ta=25℃  Ir=2.0μA 20
 Average Forward Current If(AV) A 50Hz Half-sine Wave , Resistance load @Tbreak=50℃ 2.0
 Backward Recovery Time Trr nS   100
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 80
 Operating Ambient Temperature Ta   -55~+175
 Storage Temperature Tstg   -55~+150
 Forward Peak Voltage Vfm V   ≥24.0
 Backward Peak  Current Irrm1 μA @ Ta=25℃ VRM=VRRM 2.0
Irrm2 μA @ Ta=100℃ VRM=VRRM 20.0
 Absolute Maximum Ratings & Electrical Characteristics
