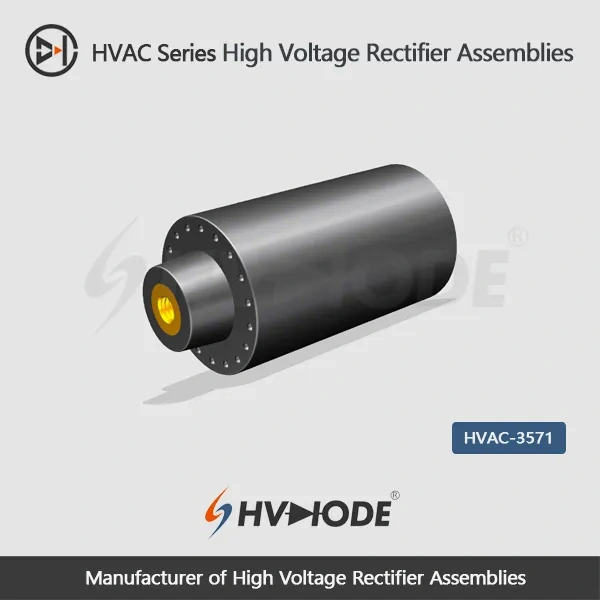

HVAC5-10 Cylindrical High Voltage Rectifier Assembly 5KV 10A 50-60Hz

Product main features:
1. Nut installation, can also be connected in series.
2. High thermal conductivity epoxy molding compound molding.
3. High voltage end concave structure..
4. High voltage devices that can be connected in series to form higher voltage withstand levels.
5. high temperature resistant chip.
6. Patented products receive a lot of positive reviews.
  • HVAC5-10 Cylindrical High Voltage Rectifier Assembly 5KV 10A  50-60Hz
  • HVAC5-10 Cylindrical High Voltage Rectifier Assembly 5KV 10A  50-60Hz
  • HVAC5-10 Cylindrical High Voltage Rectifier Assembly 5KV 10A  50-60Hz
  • HVAC5-10 Cylindrical High Voltage Rectifier Assembly 5KV 10A  50-60Hz
Desciption
 HVAC5-10 Cylindrical High Voltage Rectifier Assembly Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=2.0μA 5.0
 Peak Working Backward Voltage Vrwm KV Ta=25℃  Ir=2.0μA 5.0
 Average Forward Current If(AV) A 50Hz Half-sine Wave , Resistance load @Tbreak=50℃ 10.0
 Backward Recovery Time Trr nS   --
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 200
 Operating Ambient Temperature Ta   -55~+175
 Storage Temperature Tstg   -55~+150
 Forward Peak Voltage Vfm V   ≥5.5
 Backward Peak  Current Irrm1 μA @ Ta=25℃ VRM=VRRM 2.0
Irrm2 μA @ Ta=100℃ VRM=VRRM 20.0
 Absolute Maximum Ratings & Electrical Characteristics
