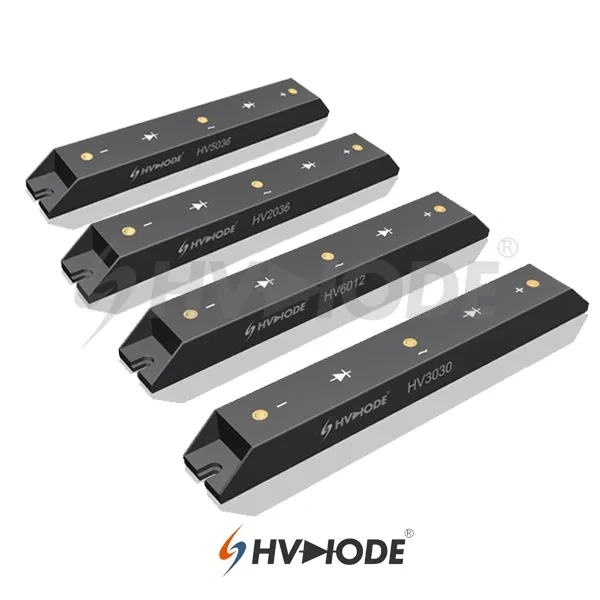

hvdiode: HV6030 High Voltage Rectifier Half-Phase Bridges 30kV 6A 50-60Hz Single Arm

Explore the power of hvdiode's HV6030 High Voltage Rectifier Half-Phase Bridges. With a 30kV rating, 6A capacity, and optimized for 50-60Hz, this single-arm rectifier ensures efficient and reliable performance in high voltage applications.
GET A QUOTE
  • hvdiode: HV6030 High Voltage Rectifier Half-Phase Bridges 30kV 6A 50-60Hz Single Arm
  • hvdiode: HV6030 High Voltage Rectifier Half-Phase Bridges 30kV 6A 50-60Hz Single Arm
  • hvdiode: HV6030 High Voltage Rectifier Half-Phase Bridges 30kV 6A 50-60Hz Single Arm
  • hvdiode: HV6030 High Voltage Rectifier Half-Phase Bridges 30kV 6A 50-60Hz Single Arm
  • hvdiode: HV6030 High Voltage Rectifier Half-Phase Bridges 30kV 6A 50-60Hz Single Arm
Desciption
Discover the cutting-edge technology behind hvdiode's HV6030 High Voltage Rectifier Half-Phase Bridges. Engineered for excellence, this single-arm rectifier is designed to meet the demands of high voltage environments.

Main features of the product

1. Nut wiring installation.

2. Special Plastic case body, Epoxy filled.

3. It can also form full wave, full bridge, and three-phase rectifier circuits.

4. The specially designed positioning hole structure facilitates installation.

5. High temperature resistant chips ensure reliable operation to the greatest extent possible.

Trust in hvdiode's expertise to deliver high-quality solutions for your high voltage requirements. Elevate your applications with the HV6030 High Voltage Rectifier Half-Phase Bridges


 HV6030 High Voltage Rectifier Half-phase Bridges(Single arm)  Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=2.0μA 30.0
 Peak Working Backward Voltage Vrwm KV Ta=25℃  Ir=2.0μA 30.0
 Average Forward Current If(AV) A 50Hz Half-sine Wave , Resistance load @Tbreak=50℃ 6.0
 Backward Recovery Time Trr nS   --
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 200
 Operating Ambient Temperature Ta   -55~+175
 Storage Temperature Tstg   -55~+150
 Forward Peak Voltage Vfm V   ≥36.0
 Backward Peak  Current Irrm1 μA @ Ta=25℃ VRM=VRRM 2.0
Irrm2 μA @ Ta=100℃ VRM=VRRM 20.0
 Absolute Maximum Ratings & Electrical Characteristics
