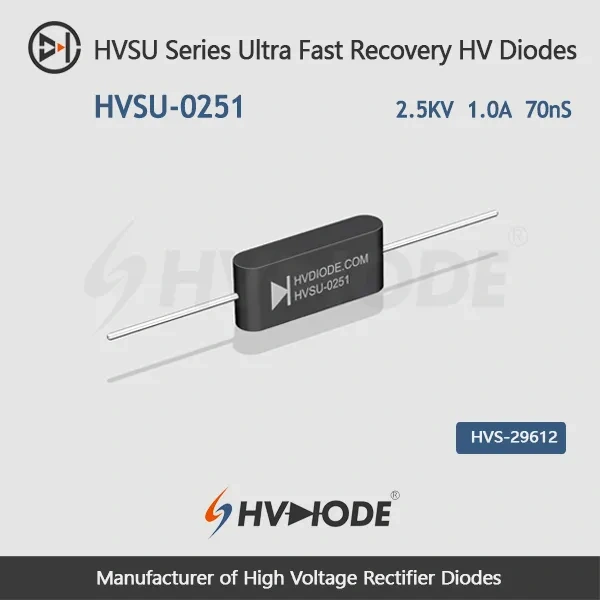

HVSU-0251 Ultra Fast Recovery High-Voltage Diode 2.5KV 1A 70nS

Product main features:
1. Axial leaded connection.
2. High thermal conductivity epoxy compound molding.
3. Excellent surge current resistance.
4. Fast reverse recovery time for high efficiency.
5. Special high temperature glass passivation technology.
GET A QUOTE
  • HVSU-0251 Ultra Fast Recovery High-Voltage Diode 2.5KV 1A  70nS
  • HVSU-0251 Ultra Fast Recovery High-Voltage Diode 2.5KV 1A  70nS
  • HVSU-0251 Ultra Fast Recovery High-Voltage Diode 2.5KV 1A  70nS
Desciption
 HVSU-0251 Ultra Fast Recovery High-Voltage Diode  Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=1.0μA 2.5
 Peak Working Backward Voltage Vrwm KV Ta=25℃  Ir=1.0μA 2.5
 Average Forward Current If(AV) A 50Hz Half-sine Wave , Resistance load @Tbreak=50℃ 1.0
 Backward Recovery Time Trr nS   70
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 40
 Operating Ambient Temperature Ta   -55~+175
 Storage Temperature Tstg   -55~+150
 Forward Peak Voltage Vfm V   ≥3.3
 Backward Peak  Current Irrm1 μA @ Ta=25℃ VRM=VRRM 1.0
Irrm2 μA @ Ta=100℃ VRM=VRRM 20.0
 Absolute Maximum Ratings & Electrical Characteristics
