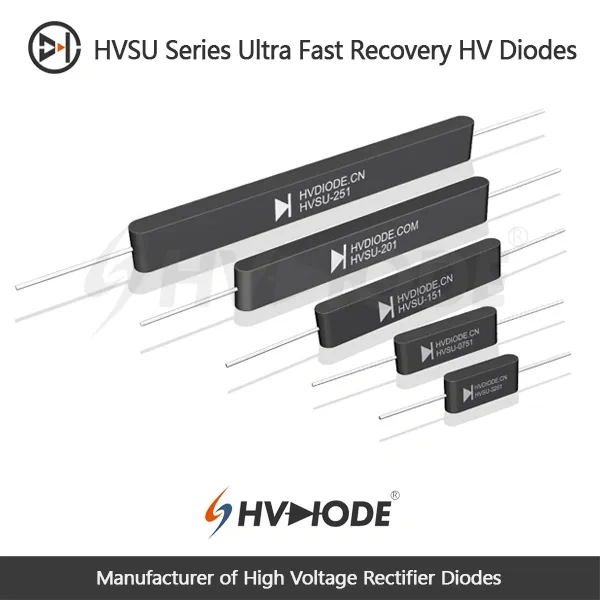

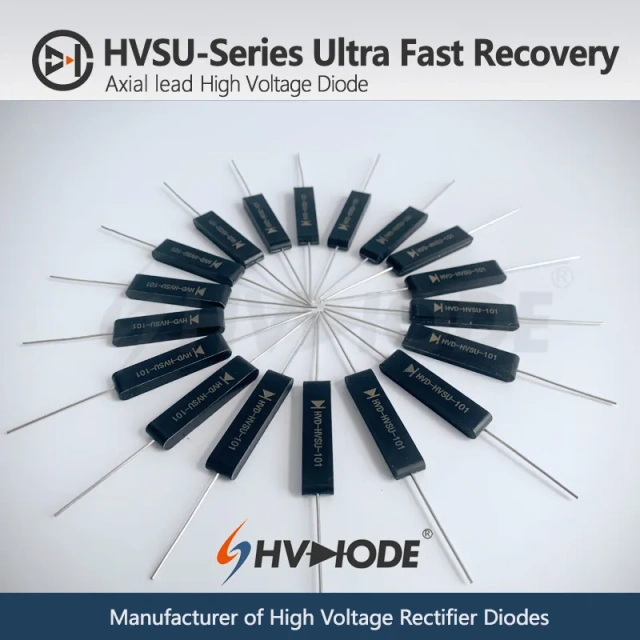

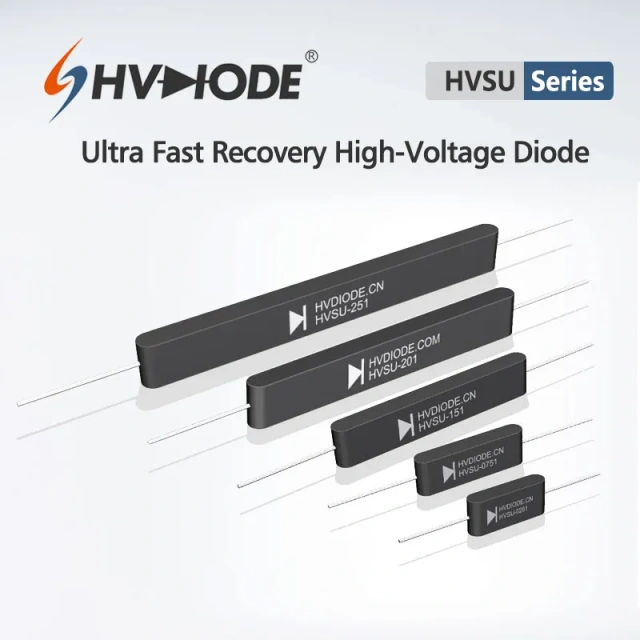

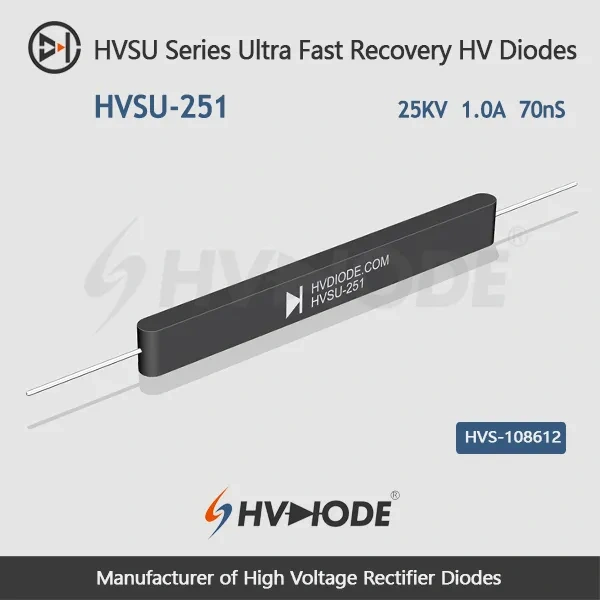

HVSU-Series Ultra Fast Recovery High Voltage Diode

 Products Main features

1. Axial lead connection.
2. High thermal conductivity epoxy composite molding.
3. Excellent surge current resistance.
4. Fast reverse recovery time, high efficiency.
5. Special high temperature glass passivation technology.

 Products Main Parameters

Applications

HVDIODE's HVSU-Series Ultra Fast Recovery High Voltage Diode are widely used in many fields. In addition to medical equipment (such as X-ray machines, CT machines, nuclear magnetic resonance, etc.), power supplies (such as switching power supplies, inverter power supplies, power supply filter circuits, etc.), household appliances (such as TVs, refrigerators, washing machines, etc.), instruments, radars and other fields, there are also some other important applications.

1. Industrial control:
In industrial control systems, high-voltage diodes can be used to achieve high-precision current regulation and voltage stability to ensure the stable operation of industrial equipment.

2. Automotive electronics:
With the development of electric and intelligent automobiles, high-voltage diodes play an important role in automobile charging systems and electric vehicle drive systems. They are used to control current and voltage, improve energy utilization and equipment stability.

3. New energy equipment: In new energy equipment such as solar panels and wind turbines, high-voltage diodes are used to control current and voltage to improve energy conversion efficiency and equipment reliability.

4. Communication equipment: In some communication equipment, high-voltage diodes are also used in circuit protection and signal modulation to ensure the stability and transmission quality of communication signals.

5. Surge protection: High-voltage diodes can also be used in surge protection circuits to protect circuits from overvoltage and ensure the safety and stable operation of circuits.

6. High-voltage testing and testing: In high-voltage testing and testing equipment, high-voltage diodes are often used to generate high-voltage signals and perform circuit protection to ensure the accuracy of test results and the safety of equipment.

7. Military and aerospace: In the military and aerospace fields, high-voltage diodes are also widely used due to their excellent performance and reliability, such as radar systems, missile guidance systems, etc.

In summary, high-voltage diodes play an increasingly important role in the modern electronics industry due to their unique performance and wide application fields. With the continuous advancement of technology and the continuous expansion of application fields, the application prospects of high-voltage diodes will be broader.

Company Profile

Our product features include:
Low leakage, high surge, and resistance to high current impact;
High reverse voltage, low forward voltage, and avalanche breakdown protection;
Fast response, high efficiency, and ultra-fast recovery time;
Moisture-resistant, high insulation, and in line with industry standards.


Products are widely used in aerospace, military weapons, radars, locomotives, nuclear irradiation, power grids, oil fields, industrial and agricultural production equipment, analysis, processing equipment, medical equipment, environmental protection engineering, photovoltaic energy storage, scientific research institutes, colleges and universities, national key laboratories and other electrical and electronic engineering fields.

The company is equipped with multi-voltage high-voltage test benches, high-temperature bias test benches, high and low temperature test chambers, leakage current testers, TRR testers, surge impact test benches, Vf, Vr parameter simulation test benches and other sets of parameter testing devices. All of them have been certified by national metrology and testing units to provide customers with accurate parameter data and reliable technical solutions.

The company adheres to the core corporate culture of "people-oriented, customer-oriented, honest management, and attentive service".
The company advocates the business purpose of "integrity, pragmatism, rigor, efficiency, mutual assistance and innovation".

Over the years, relying on rich experience in product manufacturing and high-voltage application technology, it has established good long-term cooperative relations with many large domestic and foreign companies, and has been unanimously recognized and trusted by customers. And constantly optimize product quality, enhance the company's market competitiveness, establish a corporate brand image, and strive to become a world-class high-voltage rectifier component manufacturer.

Shuli develops and mass-produces GPP high junction temperature high-voltage diode products with high junction temperature. Low leakage, high surge capability and good stability, the parameter performance reaches the industry-leading level

Double-sided gold evaporation, double-sided silver, nickel silver, etc., the application of various metal coatings has greatly improved the product's flow capacity, stability and service life.

Shuli attaches great importance to efficiency, produces large quantities of reliable and stable semiconductor components, and always focuses on the research and development of industry-leading, extensive and in-depth power semiconductor high-voltage product portfolio.

It can meet the strict standards of various industries such as medical equipment, aerospace, military weapons, etc.
