| Type | Vrrm(KV) | Io(mA) | Trr(nS) | Ifsm(A) | Vfm(V) | Irrm(uA) | ||
|---|---|---|---|---|---|---|---|---|
| NV2F20 | 2 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV3F20 | 3 | 20 | 80 | 3 | 8 | 0.02 | ||

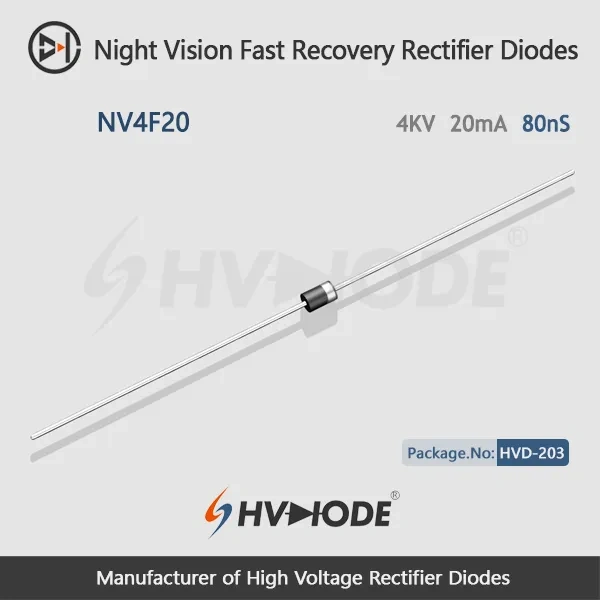

| NV4F20 | 4 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV5F20 | 5 | 20 | 80 | 3 | 8 | 0.02 | ||
| The type is not fully displayed,contact us for other requirements please. | ||||||||
| NV2F50 | 2 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV3F50 | 3 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV4F50 | 4 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV5F50 | 5 | 50 | 80 | 5 | 7 | 0.02 | ||
| The type is not fully displayed,contact us for other requirements please. | ||||||||
| NVF-Series Fast recovery high voltage diodes Data Sheet (2-5KV 20-50mA 80nS) | ||||
| Parameter | Symbol | Unit | Test Conditions | Value |
| Repetitive Peak Backward Voltage | Vrrm | KV | Ta=25℃ Ir=1.0nA | 1.2 |
| Average Forward Current | If2(AV) | mA | Ta=25℃ In air | 5 |
| Average Forward Current | If2(AV) | mA | Ta=60℃ In oil | 5 |
| Backward Recovery Time | Trr | nS | 50 | |
| Surge Forward Current | Ifsm | A | 0.01S @ Half-Sine wave 50Hz | 0.5 |
| Junction Temperature(MAX) | Ta | ℃ | -55～+125 | |
| Storage Temperature(MAX) | Tstg | ℃ | -55～+125 | |
| Forward Peak Voltage | Vfm | V | ≥4.0 | |
| Backward Peak Current | Irrm1 | nA | @ Ta=25℃ VRM=VRRM | 1.0 |
| Irrm2 | nA | @ Ta=60℃ VRM=VRRM | 5.0 | |
| Absolute Maximum Ratings & Electrical Characteristics | ||||
Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.
