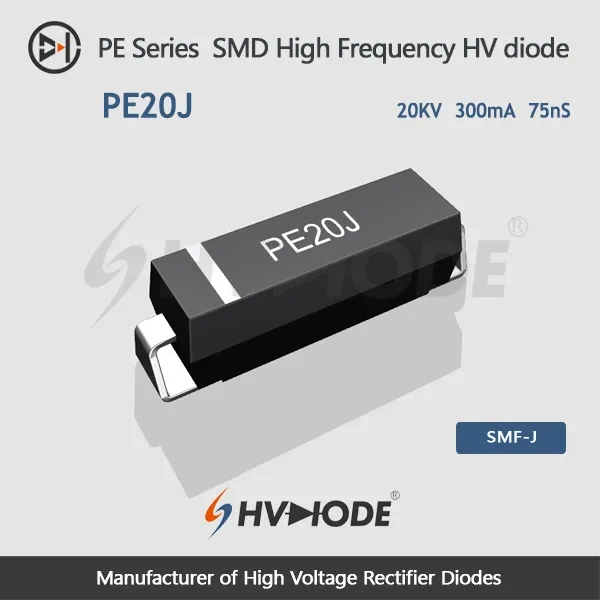

PE20J SMD high voltage diode 20KV,300mA, 75nS

Products Main features:
1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、J-Lead(Inner Bend) shapes.
5、Ultra small size package
6、Fast recovery PF Series are the same package size.
  • PE20J SMD high voltage diode 20KV,300mA, 75nS
  • PE20J SMD high voltage diode 20KV,300mA, 75nS
  • PE20J SMD high voltage diode 20KV,300mA, 75nS
  • PE20J SMD high voltage diode 20KV,300mA, 75nS
Desciption
 PE20J SMD high voltage diode Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=1.0μA 20
 Peak Working Backward Voltage Vrwm KV Ta=25℃  Ir=1.0μA 20
 Average Forward Current If(AV) mA 50Hz Half-sine Wave , Resistance load @Tbreak=50℃ 300
 Backward Recovery Time Trr nS   75
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 10
 Operating Ambient Temperature Ta   -40~+150
 Storage Temperature Tstg   -40~+120
 Forward Peak Voltage Vfm V   ≥16.1
 Backward Peak  Current Irrm1 μA @ Ta=25℃ VRM=VRRM 1.0
Irrm2 μA @ Ta=100℃ VRM=VRRM 20.0
 Absolute Maximum Ratings & Electrical Characteristics
