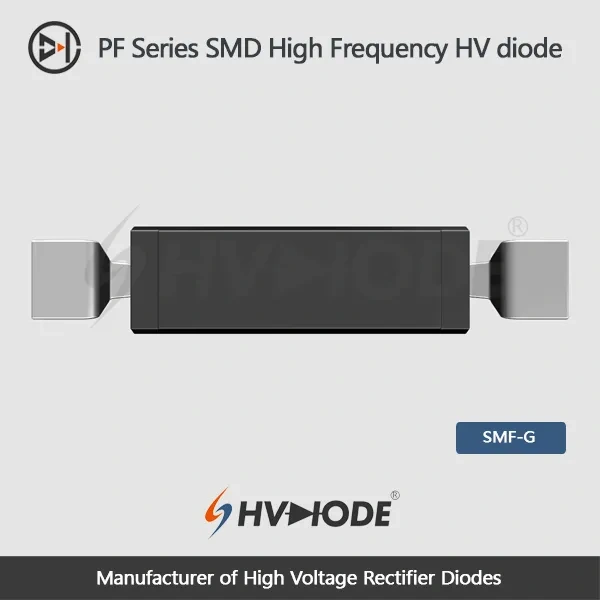

Products Main features 1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、Gullwing(Outer Bend) shapes.
5、Ultra small size package
6、Fast recovery PF Series are the same package size.
Products Main Parameters | Type | Vrrm(KV) | Io(mA) | Trr(nS) | Ifsm(A) | Vfm(V) | Irrm1/Irrm2(uA) |
|---|---|---|---|---|---|---|
| PF30A | 30 | 20 | 70 | 10 | 18.5 | 1/20 |
| PF30B | 30 | 30 | 70 | 10 | 19.0 | 1/20 |
| PF30C | 30 | 50 | 70 | 10 | 20.0 | 1/20 |
| PF30D | 30 | 60 | 70 | 10 | 20.6 | 1/20 |
| PF30E | 30 | 80 | 70 | 10 | 21.2 | 1/20 |
| PF30F | 30 | 100 | 70 | 10 | 22.0 | 1/20 |
| PF30G | 30 | 150 | 75 | 10 | 24.2 | 1/20 |

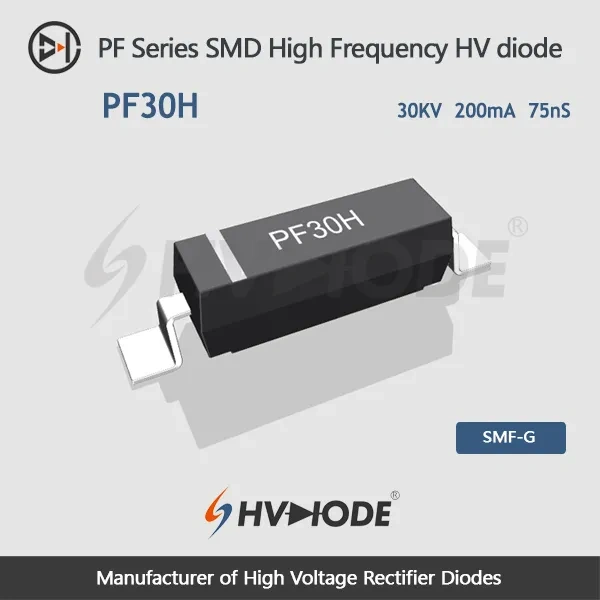

| PF30H | 30 | 200 | 75 | 10 | 25.5 | 1/20 |
ApplicationsHVDIODE's PF30 series SMD high-voltage diodes are widely used in many fields. In addition to medical equipment (such as X-ray machines, CT machines, nuclear magnetic resonance, etc.), power supplies (such as switching power supplies, inverter power supplies, power supply filter circuits, etc.), household appliances (such as TVs, refrigerators, washing machines, etc.), instruments, radars and other fields, there are also some other important applications.
1. Industrial control:
In industrial control systems, high-voltage diodes can be used to achieve high-precision current regulation and voltage stability to ensure the stable operation of industrial equipment.
2. Automotive electronics:
With the development of electric and intelligent automobiles, high-voltage diodes play an important role in automobile charging systems and electric vehicle drive systems. They are used to control current and voltage, improve energy utilization and equipment stability.
3. New energy equipment: In new energy equipment such as solar panels and wind turbines, high-voltage diodes are used to control current and voltage to improve energy conversion efficiency and equipment reliability.
4. Communication equipment: In some communication equipment, high-voltage diodes are also used in circuit protection and signal modulation to ensure the stability and transmission quality of communication signals.
5. Surge protection: High-voltage diodes can also be used in surge protection circuits to protect circuits from overvoltage and ensure the safety and stable operation of circuits.
6. High-voltage testing and testing: In high-voltage testing and testing equipment, high-voltage diodes are often used to generate high-voltage signals and perform circuit protection to ensure the accuracy of test results and the safety of equipment.
7. Military and aerospace: In the military and aerospace fields, high-voltage diodes are also widely used due to their excellent performance and reliability, such as radar systems, missile guidance systems, etc.
In summary, high-voltage diodes play an increasingly important role in the modern electronics industry due to their unique performance and wide application fields. With the continuous advancement of technology and the continuous expansion of application fields, the application prospects of high-voltage diodes will be broader.
