SP-Series SMD High Voltage Diodes

Parameter Optional Range：（3~8KV; 40~750mA; 50~100nS）
Packaging:
J-Lead
Gullwing
Vr 反向电压:
3KV
5KV
8KV
Trr 反向恢复时间:
50~100nS
If 正向电流:
40mA
100mA
120mA
270mA
450mA
750mA
GET A QUOTE Download
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
  • SP-Series SMD High Voltage Diodes
Desciption

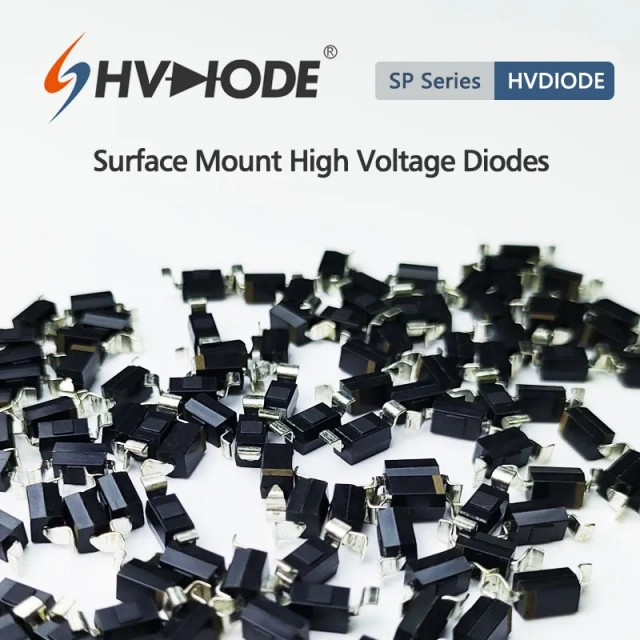

HVDIODE's SP series SMD high-voltage diodes are convenient for engineers to intuitively compare and select suitable product models according to different circuit usage. They also adopt low-power design, focus on improving the conversion efficiency of the rectifier circuit, and perform well in high temperature environments.
It can provide a nominal reverse voltage of 3~8KV; a capacity selection of 40~750mA and a wider Trr selection range of 50~100nS.
It is very suitable for reliable, compact and high-performance high-voltage rectifier circuit applications.


 Products Main features

1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、J-Lead(Inner Bend) and Gullwing(Outer Bend), two different shapes available for you
5、Ultra small size package
6、Fast recovery SP Series are the different package size.


 Products Main Parameters
 （3~8KV; 40~750mA; 50~100nS）
Type Vrrm(KV) Io(mA) Trr(nS) Ifsm(A) Vfm(V) Irrm1/Irrm2(uA)
J-Lead(Inner Bend) Shapes

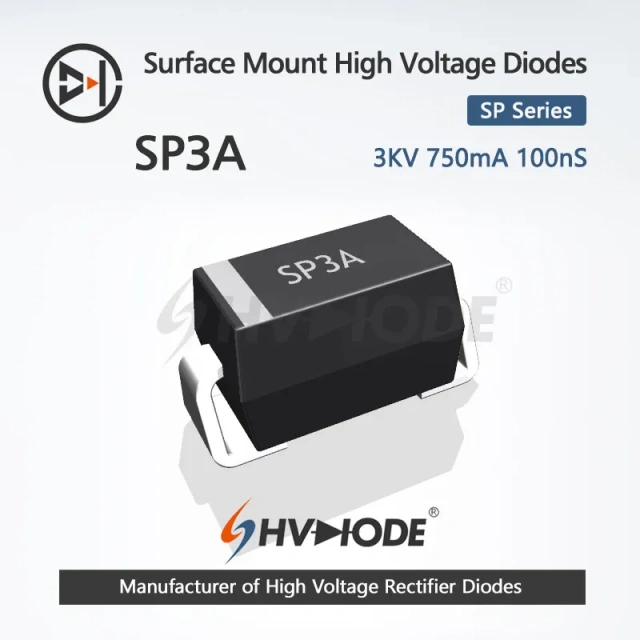

SP3S 3 120 100 5 3.9 1/20
SP3L 3 450 230 10 3.6 1/20
SP3A 3 750 350 15 3.2 1/20

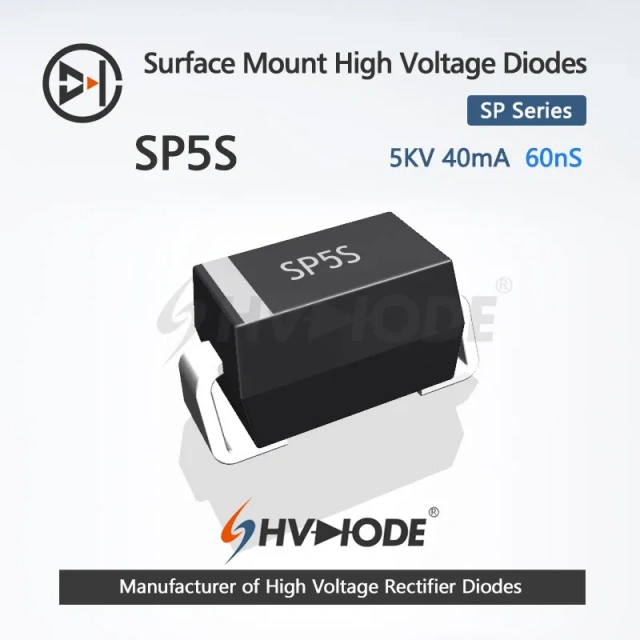

SP5S 5 40 30 5 7.0 1/20
SP5L 5 270 200 10 8.0 1/20

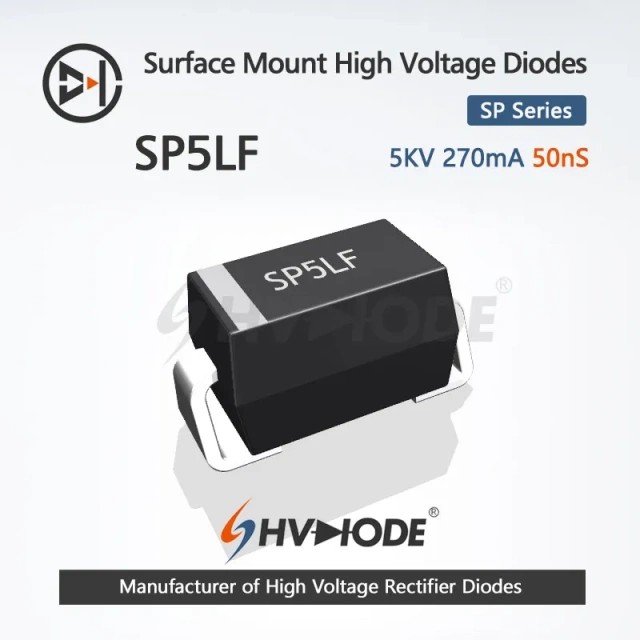

SP5LF 5 270 200 10 7.6 1/20
Gullwing(Outer Bend) Shapes

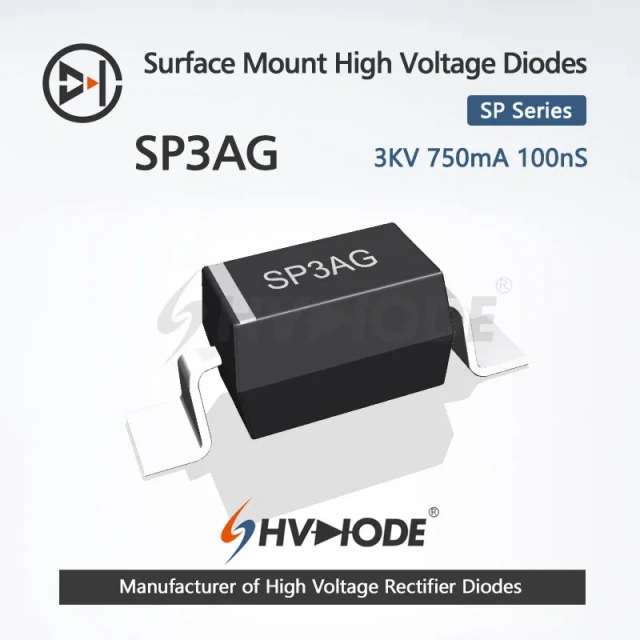

SP3SG 3 120 100 5 3.9 1/20
SP3LG 3 450 230 10 3.6 1/20
SP3AG 3 750 350 15 3.2 1/20
SP5SG 5 40 30 5 7.0 1/20

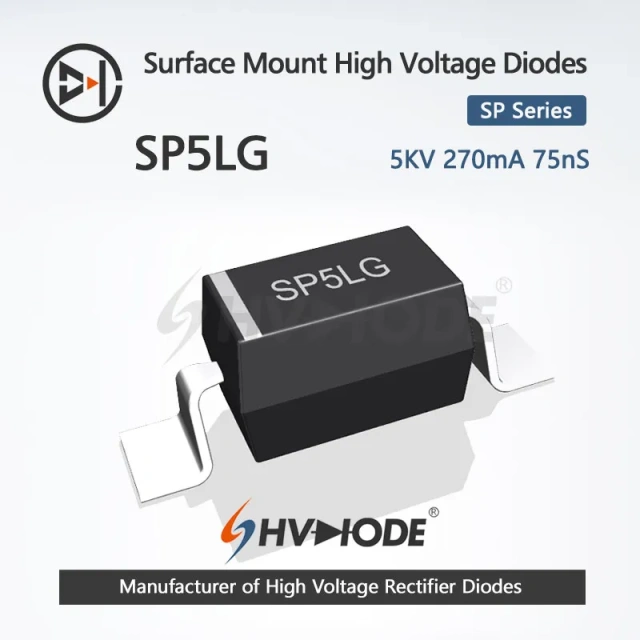

SP5LG 5 270 200 10 8.0 1/20

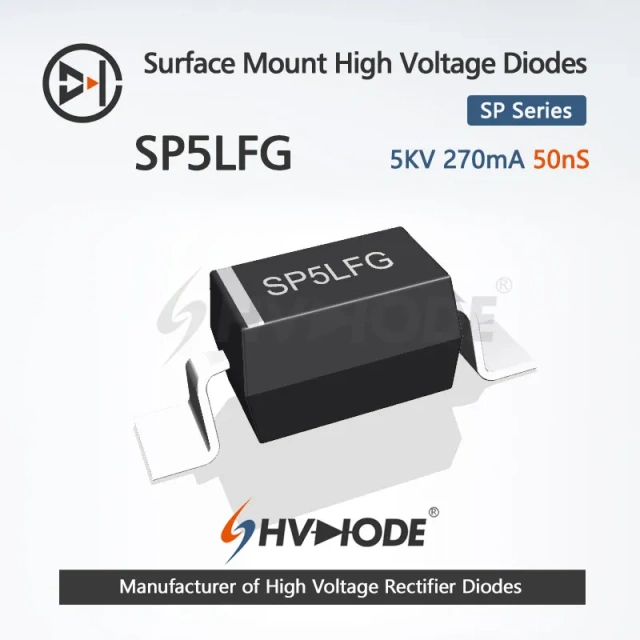

SP5LFG 5 270 200 10 7.6 1/20
SP8SG 8 40 30 5 13.0 1/20

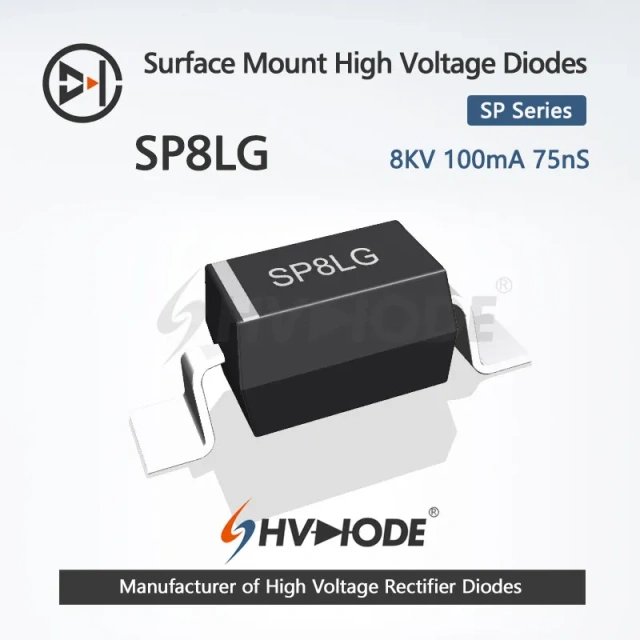

SP8LG 8 100 80 10 13.0 1/20
For other parameter requirements, please contact our customer service. [email protected]
